$3,199.99 $4,000.00
| /

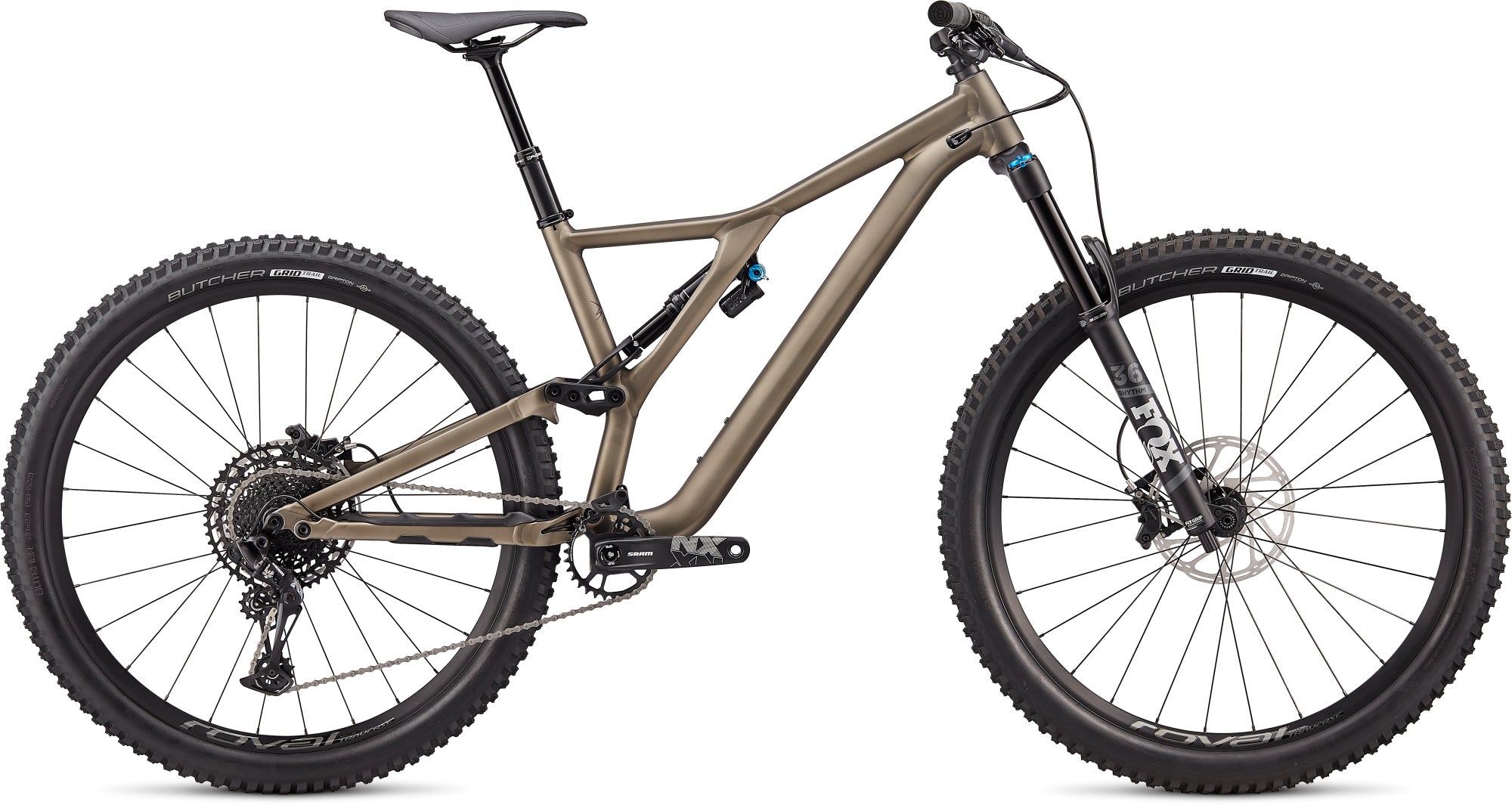

Outfitted with a no-fuss SRAM GX 12-speed groupset, the Stumpjumper Alloy is your all-access pass for trail adventure.
• THE TRAIL BENCHMARK — When we set out to design the all-new Stumpjumper, we pursued some hefty goals. It had to excel on any kind of trail, for every style of rider. To achieve that, we went after serious weight reduction without sacrificing durability, a stiff, responsive chassis that still rides light and lively, geometry that improves everyone’s riding, and the best suspension kinematics we know how to design. Turns out, you can have your cake and eat it too with the new Stumpjumper.
• THE SWEETEST 130MM OF TRAVEL YOU’LL EVER RIDE — We massaged the kinematics of the Stumpjumper suspension to bring out the very best all-round performance possible in a 130mm package. Countless hours of suspension lab development and field testing created a refined mid-travel ripper that eats big terrain like a gravity fed beast, handles like a dream everywhere, and climbs like it has a motor.
• PROGRESSIVE GEOMETRY — The S-Sizing geometry of the new Stumpjumper hits the progressive sweet spot. It’s long, low and slack, with a short offset fork and a steeper seat tube angle. These numbers combine to make your ride more stable,
more carvealicious, more comfortable climbing, more better everywhere. With FlipChip adjustability you’re able to further fine-tune your fit, ensuring that your new Stumpjumper performs flawlessly on whatever terrain you choose.
• RIDER-FIRST ENGINEEREDTM — Rider-First EngineeredTM frames use a size-specific approach to ride characteristics that ensures benchmark handling and flawless performance, regardless of frame or rider size. Whether you’re a jump-happy grom riding an S1, or a DH-fiend giant in need of the lengthy S6, you’ll experience the same ride traits – rail-sharp cornering and balanced front and rear stiffness – at the lightest-possible weight, And by light, we mean real light: 2,250 grams (S-Works, S-3 size, with rear shock).
Frame | Alloy chassis and rear-end, asymmetrical design, 29 Trail Geometry, horst pivot BB adjustment, threaded BB, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm of travel |
---|---|
Fork | FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset, 150mm of travel |
Rear Shock | FOX FLOAT DPS Performance, Rx Trail Tune, rebound and 3-position compression adjust, 190x45mm |
Rims/Wheels | Roval Traverse 29 Alloy, 30mm inner width, hand-built, 2Bliss Ready |
Hubs | Roval, sealed cartridge bearings, 15x110mm spacing, 28h Roval DT Swiss 370, Ratchet LN, SRAM XD driver body, 12mm thru-axle, 148mm spacing, 28h |
Spokes | DT Swiss Competition Race |
Tires | Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3" Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 29x2.3" |
Crankset | SRAM GX Eagle, DUB, S2-S5: 170mm, S6: 175mm |
Chainwheel | 32T |
Bottom Bracket | SRAMDUB,BSA73mm,Threaded |
Chain | SRAM GX Eagle, 12-speed |
Front Derailleur | N/A |
Rear Derailleur | SRAM GX Eagle, 12-speed |
Rear Cogs | SRAM XG-1295 Eagle, 10-52t |
Shifters | SRAM X01 Eagle, trigger, 12-speed |
Handlebars | Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width |
Tape/Grips | Deity Lockjaw, Black |
Stem | Alloy Trail Stem, 35mm bar bore |
Brakes | SRAM Code RS, 4-piston caliper, hydraulic disc, 200mm Front and Rear |
Saddle | Bridge Comp, Hollow Cr-mo rails, 155/143mm |
Seat Post | X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S2: 125mm, S3: 150mm, S4/S5: 175mm, S6: 190mm |
Seat Binder | Alloy, 38.6mm |
Color(s) | Satin Gunmetal/Taupe |
Weight | 14.65kg (32 lb, 4.8 oz) in S4 |
